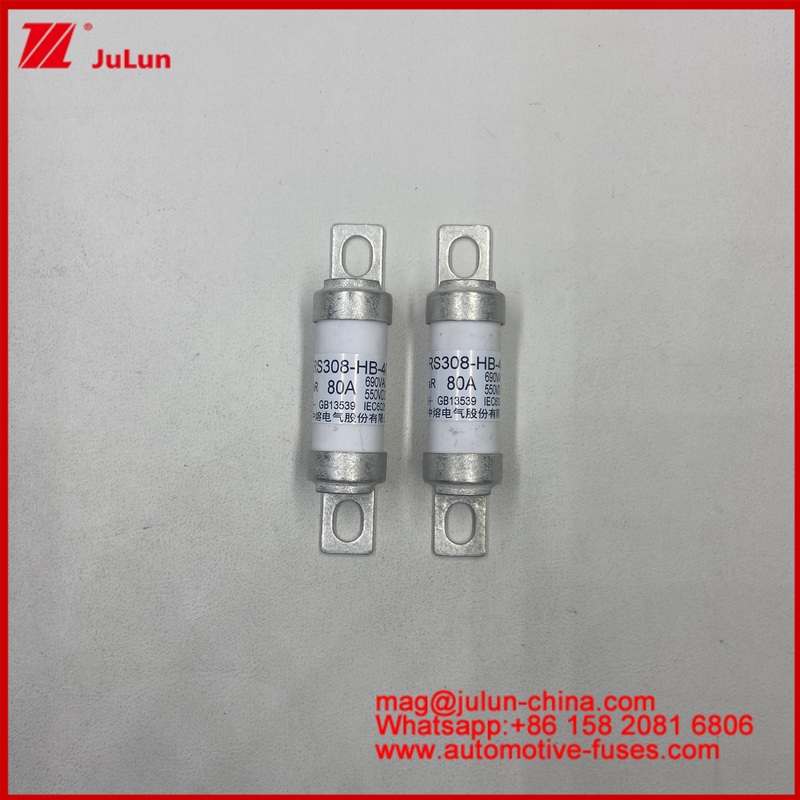

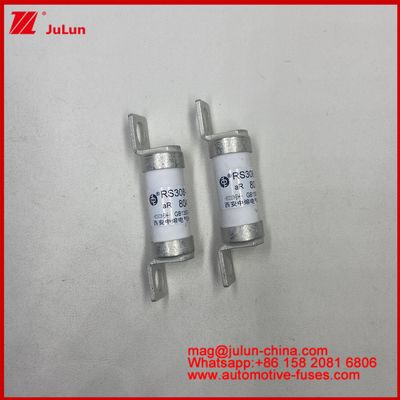

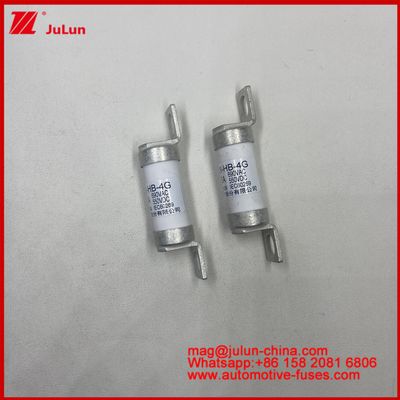

Battery, Motor RS308-HB 16A 550VDC Energy Storage Ceramic Automotive Fuses With Rated Voltage AC690V/DC550V And Mounting Method SCREW BOLT
Dettagli:
| Luogo di origine: | Cina |
| Marca: | SINO FUSE |
| Certificazione: | UL248 / GB13539 IEC60269 |
| Numero di modello: | RS308-HB 4G aR 690 V CA 550 V CC |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 10 |
|---|---|
| Prezzo: | 2.5~5.5USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Informazioni dettagliate |
|||
| Corrente nominale: | Da 10 A a 710 A | Materiale: | Acciaio a base di acciaio |
|---|---|---|---|
| Bullone di installazione: | M6 M8 | Metodo di montaggio: | bullone a vite |
| Caratteristica: | Piccole dimensioni con corrente nominale elevata per la protezione da cortocircuito | Prodotto di applicazione: | Sistema di trazione EV, conversione di potenza, accumulo di energia, caricabatterie e ecc. |
| Categoria d'uso: | AR | Tensione nominale: | CA 690 V/CC 550 V |
| Evidenziare: | ceramic automotive fuses with screw bolt,16A 550VDC energy storage fuses,RS308-HB motor fuses AC690V |
||
Descrizione di prodotto
The rated current range of these fuses spans from 10A to 710A, accommodating a wide spectrum of automotive applications and energy storage configurations. Additionally, the rated voltage supports up to AC690V and DC550V, allowing these Ceramic Vehicle Fuses to be versatile in both AC and DC electrical systems.
Environmental reliability is a critical consideration for automotive components, and these Ceramic Automotive Fuses excel in this regard. They comply with stringent environmental standards, including ISO8820, JASO D622, and GB/T31465, ensuring that they maintain their performance under harsh conditions such as temperature fluctuations, vibration, moisture, and mechanical stress.
| Installation bolt | M6 M8 |
|---|---|
| Application product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Rated current | 10A To 710A |
| Material | Ceramic Copper Silver Quartz Sand Gold |
| Installation mode | Recommended Tight Torque |
| The performance refers | IEC60269, And The Environmental Reliability Complies With ISO8820, JASO D622, And GB/T31465 |
| Rated voltage | AC690V/DC550V |
| Usage category | AR |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Breaking capacity | AC100KA@COSφ0.2,DC50KA@L/ R≤10ms |
GRL offers high-quality Ceramic Automotive Fuses with model numbers NH000 125A, NH00 160A, and NH1 225A, designed for reliable short circuit protection in various automotive applications. These Ceramic Automobile Fuses are manufactured in China and certified by UL, ensuring top-notch safety and performance standards.
Featuring a compact design with a high current rating, our Ceramic Car Fuses utilize premium materials including ceramic, copper, silver, quartz sand, and gold to deliver exceptional durability and breaking capacity.
- Minimum order quantity: 10 pieces
- Price range: 25 to 45 USD per unit
- Packaging: Cartons
- Supply ability: 1000K pieces
- Delivery time: 2 to 3 weeks
- Payment terms: T-T
Our Ceramic Automotive Fuses are designed to provide reliable protection for your vehicle's electrical system. If you experience any issues or require assistance with installation, please ensure the fuse rating matches your vehicle specifications to prevent electrical damage.
- Always replace ceramic fuses with the same type and rating
- Inspect electrical circuits for underlying issues before replacing fuses
- Technical support available for fuse selection and troubleshooting
- Bulk ordering options and custom configurations available
